DEBIX Model A Single Board Computer

DEBIX Model A Industrial Single Board Computer

DEBIX Model A

OKdo Technology and Polyhex Technology jointly launch DEBIX Model A, an industrial grade single board computer to bring you faster speed and more powerful performance, featuring 2.3 TOPS NPU, complete software development and wide temperature range.

Product description
Specifications

BUY NOW

Overview

OKdo Technology and Polyhex Technology jointly launch DEBIX Model A, an industrial grade single board computer to bring you faster speed and more powerful performance. Based on quad core i.MX 8M Plus with 2.3 TOPS NPU, DEBIX Model A with complete software development and rich I/O ports is ready and capable for direct applications in industry 4.0, IoTs, smart cities and multimedia. DEBIX Model A features industrial grade components and wide CPU temperature range of -40℃ to 105℃ to work stably in extreme environment. Its DDR inline ECC design and 14 FinFET process ensure high industrial reliability. Combining Gigabit network, 2.4GHz & 5GHz Wifi and Bluetooth 5.0, it provides robust network control of peripherals in industrial control, industrial automation and IoTs. With quad core ARM Cortex-A53 CPU up to 1.8GHz and 2GB/4GB/6GB LPDDR4, it is able to perform sophisticated processing tasks.
Main Features

• Powerful industrial grade single board computer built to meet the needs of industry 4.0, IoTs, smart cities and multimedia

• Complete software development including Android 11/Yocto/Ubuntu operating system and basic software for fast and direct applications

• Gigabit network, 2.4GHz & 5GHz Wifi, Bluetooth 5.0, high-speed USB 3.0 and PCIe support connection and control of a variety of industrial peripherals

• Advanced multimedia capabilities include 1080p60 video encode and decode (including H.265, H.264), 3D/2D graphic acceleration, and multiple audio and voice functionalities

Specification

System
CPU	NXP i.MX 8M Plus (default), 4 x ARM Cortex-A53, comes with an integrated neural processing unit (NPU) that delivers up to 2.3 TOPS. Industrial grade CPU runs at 1.6GHz, and commercial grade CPU runs at up to 1.8GHz. (i.MX 8M Plus series CPU optional)
Memory	2GB LPDDR4 (4GB/6GB optional)
Storage	Default: TF card (Onboard 8GB/16GB/32GB/64GB eMMC optional)
Operating System	Android 11, Yocto, Ubuntu

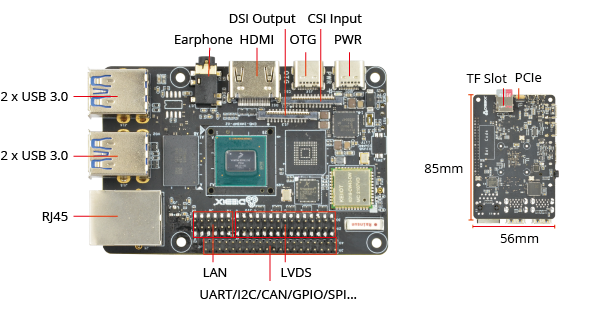

I/O Interfaces
Gigabit Network	1 x RJ45 with POE power supply (need POE power device module） 1 x pin header (without network transformer)
WIFI & BT	2.4GHz & 5GHz WIFI IEEE 802.11a/b/g/n/ac, BT5.0
USB	4 x USB 3.0 Host Type-A, 1 x USB 2.0 OTG Type-C
Audio	1 x Headphone and Mic combo port
HDMI	1 x HDMI OUT
Expansion
40-Pin Double-Row Headers	(1) 3 x UART, 2 x SPI, 2 x I2C, 2 x CAN, 1 x PWM, 2 x GPIO, dedicated interfaces can be reused as GPIO ports (2) 1 x SPDIF digital audio input/output (3) 5V power supply, system reset, ON/OFF
LVDS	1 x LVDS, single & dual channel 8bit, double-row pin headers
MIPI CSI	1 x MIPI CSI, support 4Lane FPC socket
MIPI DSI/td>	1 x MIPI DSI, support 4Lane FPC socket<
PCIe	1 x PCIe, support PCIe x1 FPC socket
Power Supply
Power Supply	DC 5V/3A Type-C
Mechanical & Environmental
Size	85.0 x 56.0mm
CPU Temperature	-40℃ to 105℃
