DEBIX Model A LoRa Board
LoRa Board

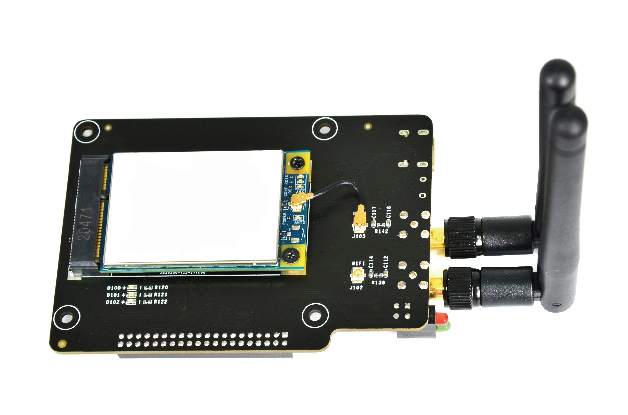

DEBIX Model A LoRa Board is compatible with DEBIX Model A and provides a Mini PCIe interface for LoRa Module. LoRa enables long-range transmissions with low power consumption.
-

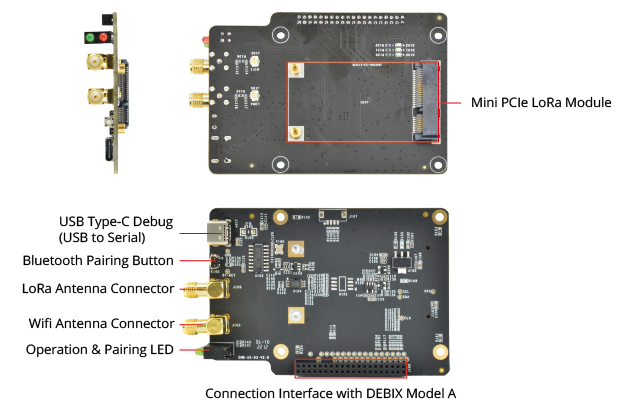

OverviewDEBIX Model A LoRa Board is compatible with DEBIX Model A and provides a Mini PCIe interface for LoRa Module. LoRa enables long-range transmissions with low power consumption. In addition to a LoRa Antenna Connector, it also has a Wifi Antenna Connector and Bluetooth Pairing Button.
-
Main Features• Provides a Mini PCIe interface for LoRa Module
• Larger wireless network coverage with lower power consumption
• With LoRa antenna and Wifi antenna connector
Specification
| I/O Interfaces | |
| USB |
1 x USB Type-C Debug (USB to Serial) |
| Mini PCIe | 1 x Mini PCIe (LoRa Module) |
| Buttons | 1 x Bluetooth Pairing Button |
| LED | 1 x Operation Indicator, 1 x Pairing Indicator |
| External Antenna | 1 x LoRa Antenna Connector, 1 x Wifi Antenna Connector |
|
EEPROM |
1 x 2Kbit EEPROM |
|
Clipper Chip |
1 x Secure Element, eg.ATECC608 |
