DEBIX Model A I/O Board
I/O Board

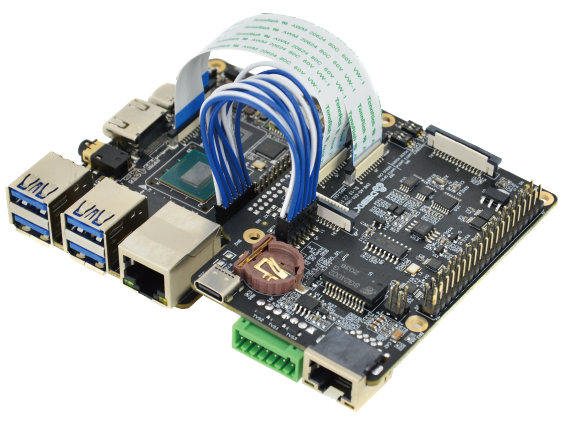

DEBIX Model A I/O Board is an add-on board designed for DEBIX Model A. It adds one RJ45 Gigabit network interface and PoE capability to your DEBIX Model A.
-
OverviewDEBIX Model A I/O Board is an add-on board designed for DEBIX Model A. It adds one RJ45 Gigabit network interface and PoE capability to your DEBIX Model A. It comes with RS232, RS485 and CAN Transceiver to allow connection with more industrial equipment, and its strong expansion ability brings unlimited possibilities.
-
Main Features• Adds one RJ45 Gigabit network interface and PoE function
• Allow connection with industrial peripherals through RS232, RS485 and CAN transceiver
• High scalability including MIPI CSI, MIPI DSI and GPIO pin headers, etc
Specification
|
I/O Interfaces |
|
|
Network |
1 x RJ45 Gigabit Network POE Supported (Compatible with POE power device module) |
|
USB |
1 x USB Type-C Debug (USB to Serial) |
|
RTC |
1 x RTC |
|
Serial Ports |
1 x RS232 1 x RS485 |
|
CAN |
1 x CAN Transceiver |
|
DIP Switch |
2 x 2bit DIP Switch (used for selecting USB-Debug, RS232, RS485 and CAN) |
|
Expansion |
|
| 40-Pin Double-Row Headers |
1) 3 x TTL UART, 2 x SPI, 2 x I2C, 2 x PWM, 2 x CLKO, 2 x CAN, 1 x I2S (Dedicated interfaces can be reused as GPIO ports) 2) 1 x SPDIF Digital Audio Input/Output |
| MIPI CSI |
1 x MIPI CSI |
| MIPI DSI |
1 x MIPI DSI |
| EEPROM |
1 x 2Kbit EEPROM |
|
Accessories |
|
|
Cables |
2 x Flexible flat cable for DSI & CSI 1 x Female to female jumper wires for Ethernet |
